SFO Airside Planning

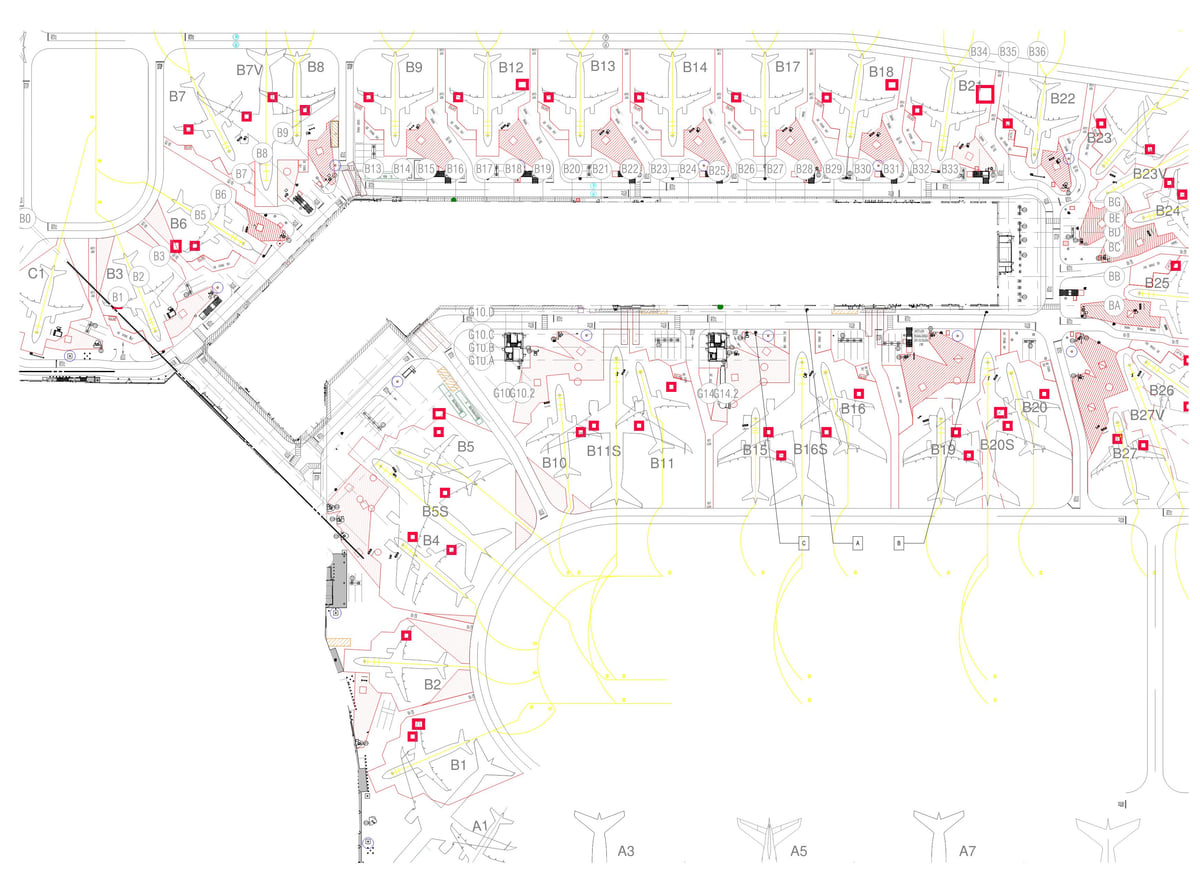

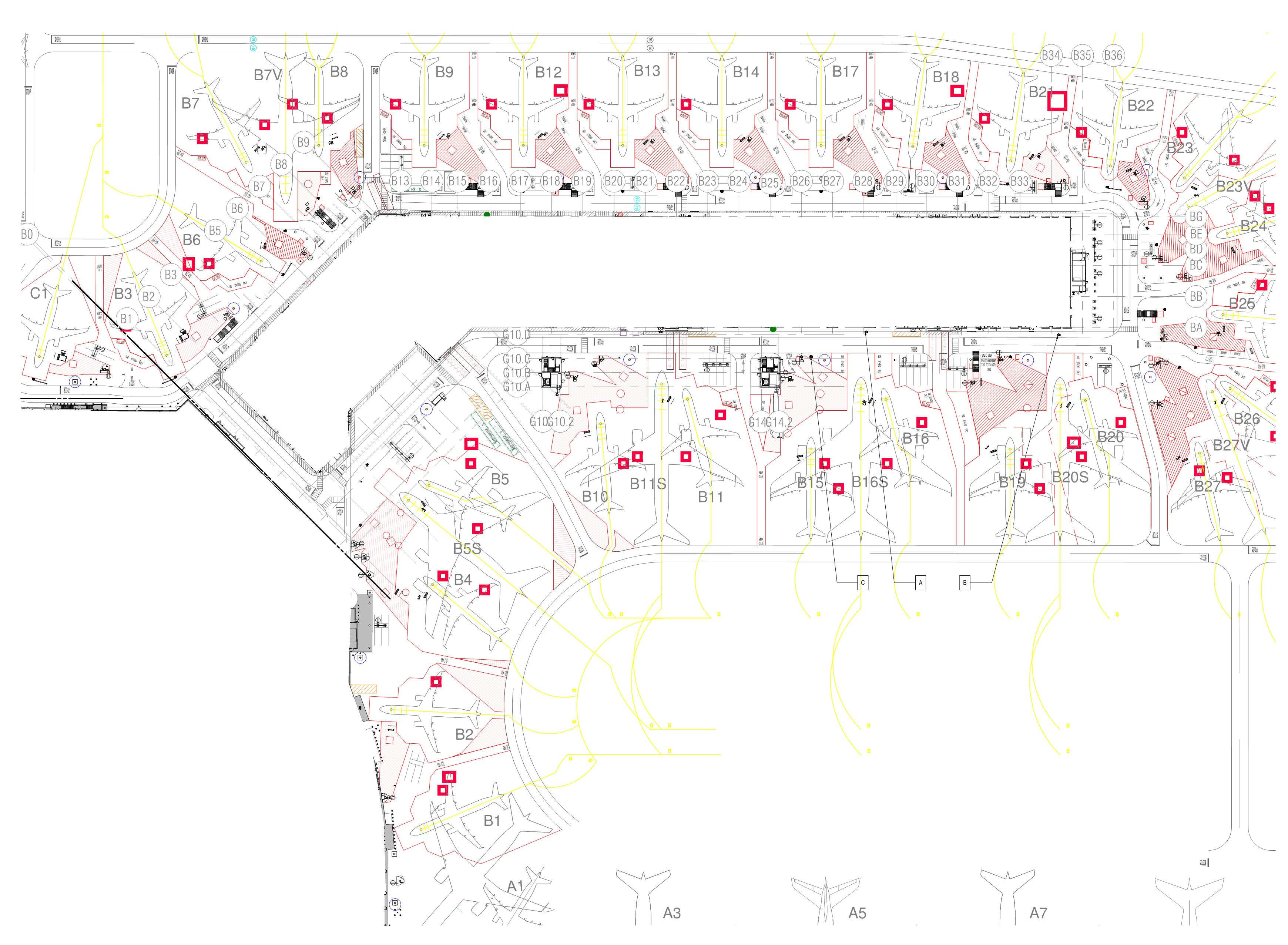

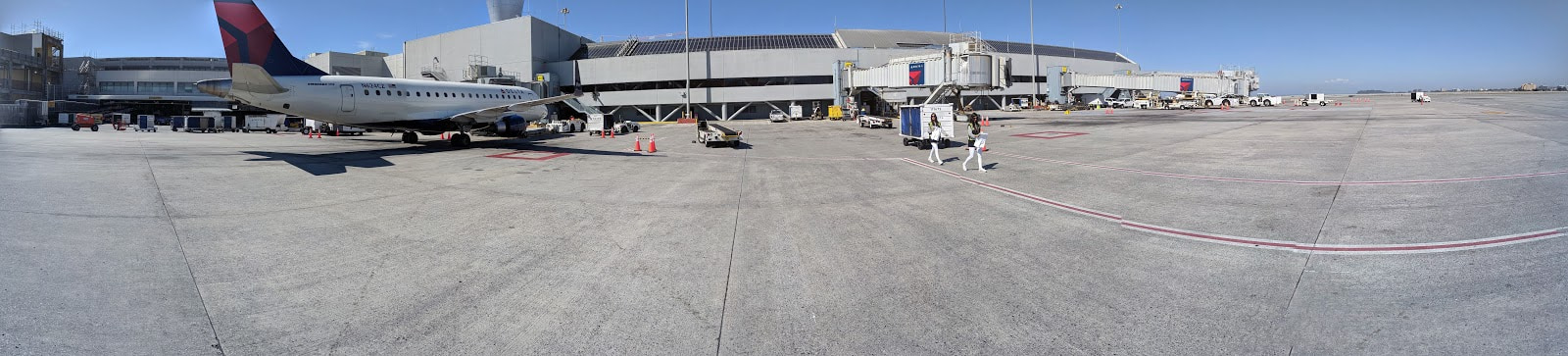

San Francisco’s International Airport, Terminal 1, Boarding Area B Airside Planning Design for the new Terminal. All the Tarmac striping has been designed following the Code and the Airport Standards. Including Aircraft Safety Envelopes, Ground Service Equipment staging and parking areas, Head and Tail of Stand road, GSE charging stations, Emergency Vehicles parking and Passenger Boarding Bridges protection areas.

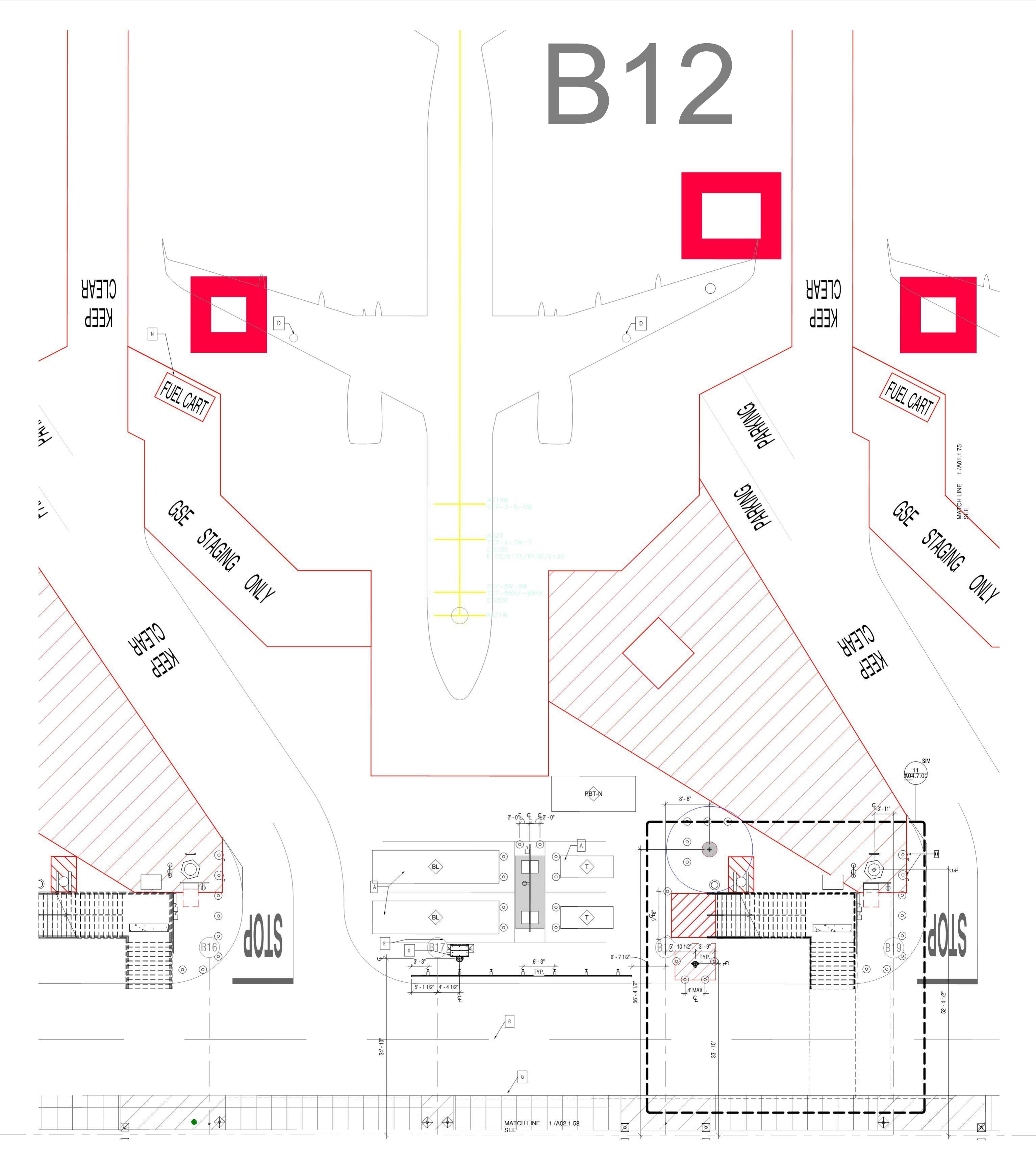

Every Stand Layout at the terminal, has been designed to service the aircraft in the most effective manner. While the plane is arriving at the gate, all the GSE stages in their position so when the aircraft arrives at the Stand, it can be served quickly and passengers can board and deboard safely and quickly.

To better understand the process of serving the plane, I created a 3D animation which has helped airlines and owners visualize it.
